1000 Membrane (16bar) (bomb bay doors)
浏览次数：
  • 1000 Membrane (16bar) (bomb bay doors)

技术规格 资料下载

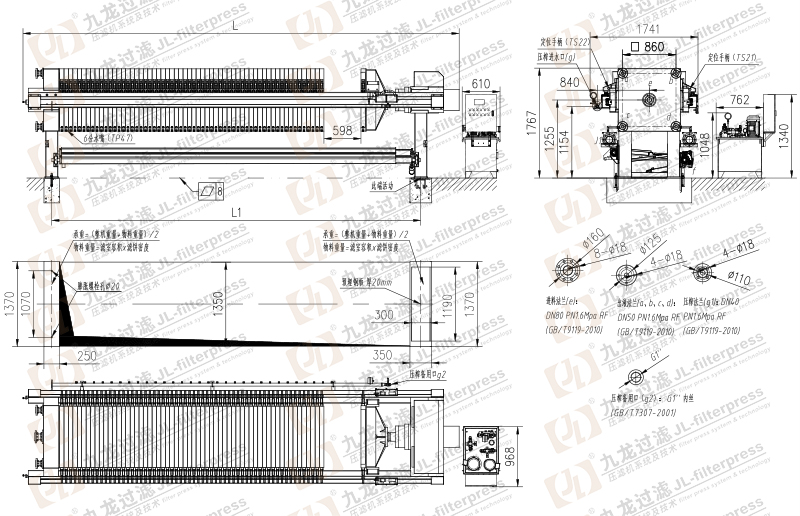

XG1000 Membrane (bomb bay doors) (16bar)
Filter pressure≤1.2MpaDiaphragm plate size1000*1000*72Cylinder diameterD280mm
Membrane squeezing pressure≤1.6MpaFilter chamber depth before the squeeze40mmMaximum stroke of oil cylinder750mm
Cylinder pressure when plates closing≤20MpaMain oil pump motor power4kw

Chamber plate size1000*1000*68Motor power of
bombay doors oil pump		1.5kw



ModelFilter area (㎡)Number of diaphragm plates (pieces)Number of chamber plates (pieces)Numberof filter chambers (pieces)Foot center distance L1(mm)Overall size L*W*H（mm）Filter chamber volume before squeezing (L)Total weight（kg）
XG100JYZ16Z2F1-32U321092031114192*1636*17676403951
XG100JYZ16Z2F1-40U4012112433954476*1636*17678004169
XG100JYZ16Z2F1-50U5015143038214902*1636*176710004496
XG100JYZ16Z2F1-60U6018173642475328*1636*176712004823
XG100JYZ16Z2F1-70U7021204246735754*1636*176714005150
XG100JYZ16Z2F1-80U8024234850996180*1636*176716005477
XG100JYZ16Z2F1-90U9027265455256606*1636*176718005804
XG100JYZ16Z2F1-100U10030296059517032*1636*176720006131
XG100JYZ16Z2F1-110U11033326663777458*1636*176722006458
XG100JYZ16Z2F1-120U12036357268037884*1636*176724006785
